Irrigation Nozzle
Manufacturing Process: Machining - Combination
Material: 6061-T6 Aluminum
Stock: Bar Stock
Machines: 7x14 Lathe, Mill
Final Cost: $96.21
Summary:

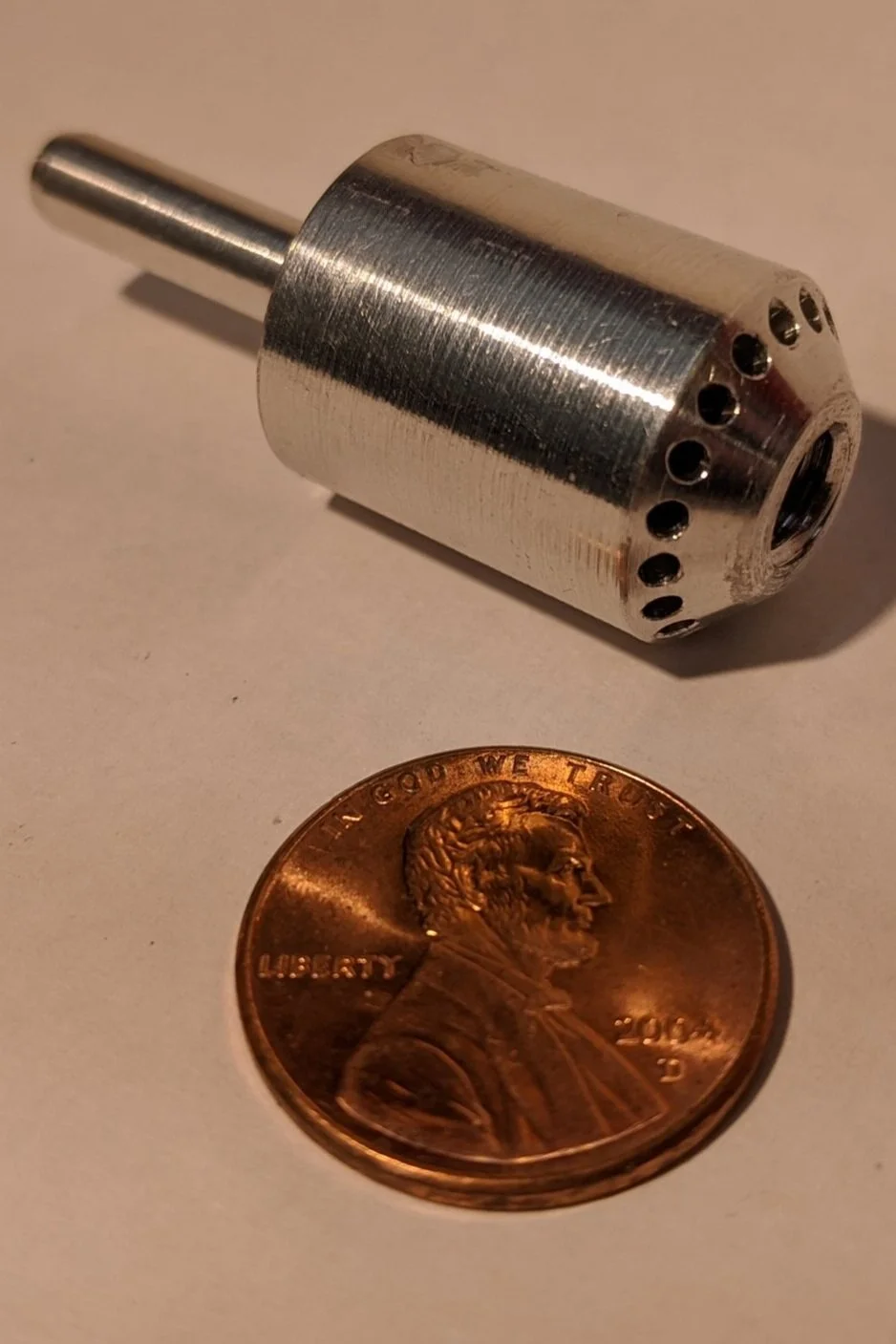

Machining a custom irrigation nozzle from stock with an inlet (left), 24 outlets, and a tapped hole to accept a 1/4-20 bolt.
Operations:
Lathe - General OD Turning (3 Surfaces)
Lathe - Center Drill and Tap
Mill - Compound Angle Rotary Table Drill (24 holes)
